Net weight(with batteries): 125kgs
Net weight(without batteries): 86.8kgs
Unit Battery Weight: 19.1kg/42.11 lbs/pc
Overalldimension(length x width x height): 1790x74.6x1200mm
Carton dimension(length x width x height): 1560x810x960mm
Seat dimension(length x width x depth): 450x425x520mm/17.72x 16.73x20.47"
Battery dimension(length x width x height): 230x136x210mm/9.06x 5.35x8.27"
Range: Up to 45km per battery charge
Incline capability: 12 degrees
Turning radius(min): 1500mm/59.06"
Recharge time: 6-8hrs
Max Forward speed: 6-18km/h
Max Backward speed:2- 6km/h
Lead time: Within 20 days after receiving the remittance(under10pcs, including 10 pcs)
MOQ: L0PCS
Terms of payment: T/T in advance/L/C at sight
Conveyance:
Quantity of 20' FCL: 30pcs
Quantity of 40'FCL: 60pcs
Quantity of 40' HQ: 60pcs

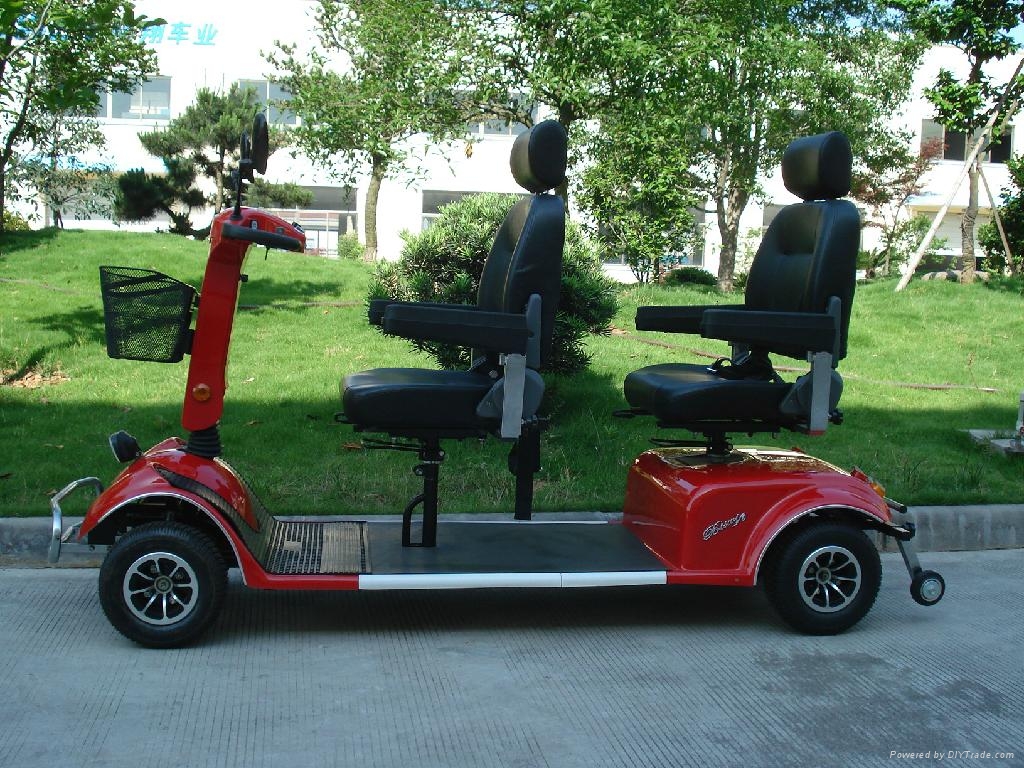

Item No:CF-MS010A
Specification:
Weight capacity: 200kgs
Rear wheel size: 15"
Front wheel size: 15"
Anti-tip wheel size: 75mm x 25mm/3" x 1"
Battery: 12V55AH x 2
Charger: AC100-240V50/60HZ 2A
OUTPUT: 24V-4A
Controller: CURTIS / PG
Motor: 24V/800W
Gross weight: 130kg/286.60 lbs
